MT7628 wifi module

/, Wifi Module/MT7628 wifi module
MT7628 wifi module 2018-08-23T07:06:43+00:00

Project Description

ITEM PARAMETERS
Chipset (CPU) MT7628
Wireless rate 300Mbps
Material FR4 (Epoxy glass cloth substrate)
Frequency range 2.4GHz
Flash/RAM 4-16MB/32-64MB
Size & Weight 43*24mm @ 35g
Application Wifi router, wifi speaker, wifi usb flash drive, wifi lock, ect
Color Green/Red or Customized
OEM & ODM Hardware or Firmware is welcomed
Shipping port Shenzhen

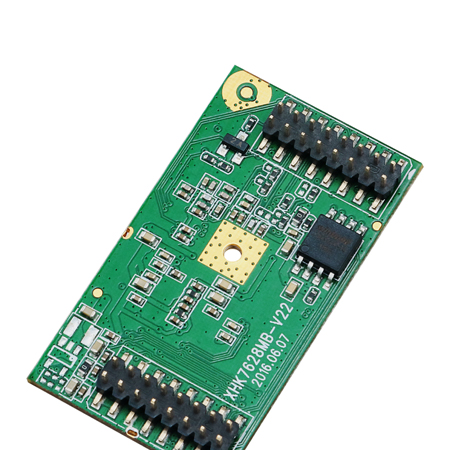

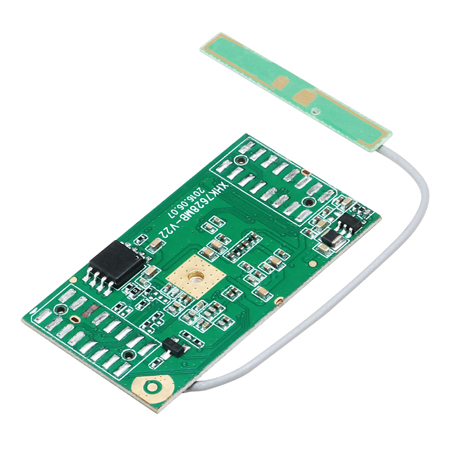

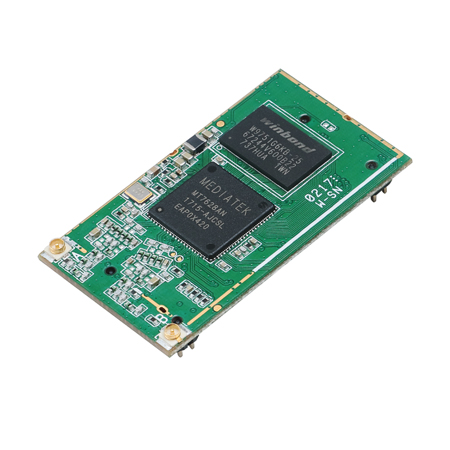

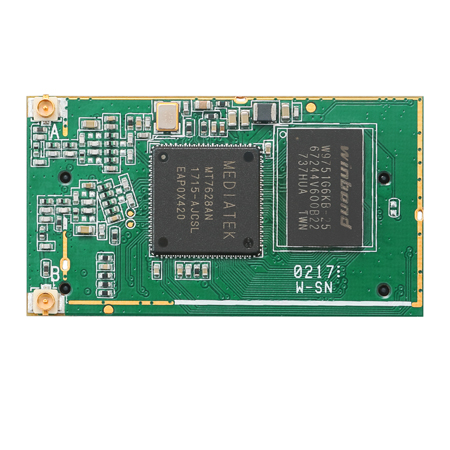

MT7628 is a standard wireless wifi module launched by our company, which have a rich external interface configuration, serial port, I2C, I2S, two RJ45 port, several IO, USB port, signal pin and so on, the module with matured and powerful functions, can be applied to a variety of applications.

This module adopt MT7628 scheme, small size, stable performance. Main characteristics are as follow:

  • Support wired turn into wireless wifi function
  • Rich external interface configuration
  • 3V power supply
  • Wireless support 802.11b/g/n, the highest rate is 300Mbps
  • High speed USB interface
  • Support cloud storage
Wifi speed 80%
Tolerance 91%
Endurance 98%

Located in China, if you purchase from us, we offer many additional convenient services, all of which cannot be easily provided by other wifi series product suppliers.
