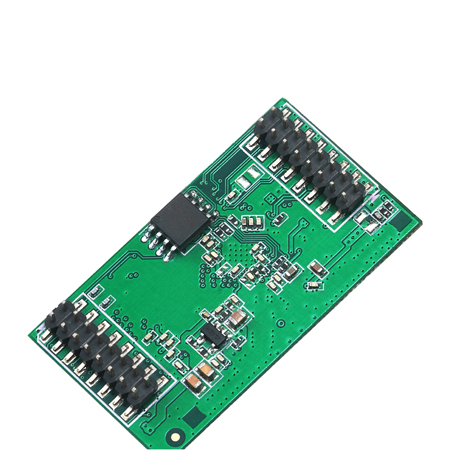

Project Description
| ITEM | PARAMETERS |
|---|---|
| Chipset (CPU) | MT7620 |
| Wireless rate | 300Mbps |
| Material | FR4 (Epoxy glass cloth substrate) |
| Frequency range | 2.4GHz |
| Flash/RAM | 4-16MB/32-64MB |
| Size & Weight | 43*24mm @ 35g |
| Application | Wifi router, wifi speaker, wifi usb flash drive, wifi lock, ect |
| Color | Green/Red or Customized |
| OEM & ODM | Hardware or Firmware is welcomed |
| Shipping port | Shenzhen |

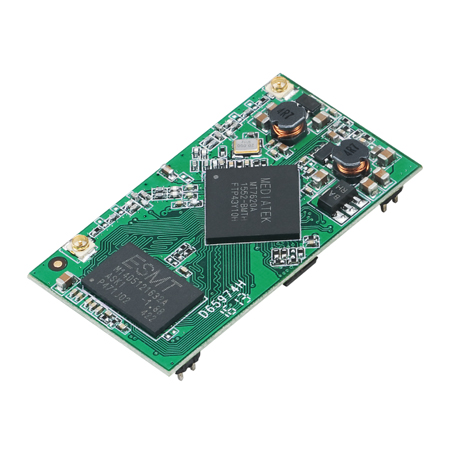

MT7620 adopt 2×2 MIMO(Multiple input multiple output) structure, wireless signal transceiver, the transmission up to 750Mbps; provide two 10/100M PHY port; a USB2.0 and GPIO port, powerful expansion，widely used in wireless hard disk, wireless high-definition receiver box, network camera, air conditioner or tv with wireless application, mifi products. Customer can choose plate antenna, also can use external antenna. Module provice whole internet port, can meets WiFi AP,WiFi STA,WiFi Repeater functions.
- With IEEE802.11N/G/B wireless network protocol, wireless transmission up to 300Mbps；
- Small size, can connect with motherboard via pinhead;
- Rich USB、GPIO port, convenient for user extended wifi embedded application.
- Stable performance, strong function and expansion.
- System software is flexible, to meet the needs of various applications.
- Provide a variety of communication interface and debug interface.
- DC 3.3V single power input.
- Support OpenWRT，Linux SDK
- Can be the customer for the second development, customized services.
Located in China, if you purchase from us, we offer many additional convenient services, all of which cannot be easily provided by other wifi series product suppliers.
